Section Connectors

Corner Bracket WD F 100

Application

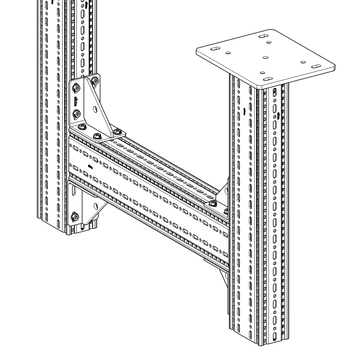

Component to be used for connections between two F100 or F100/160 sections when the structural design requires an alternative to the End Support STA F 100 as the default solution.

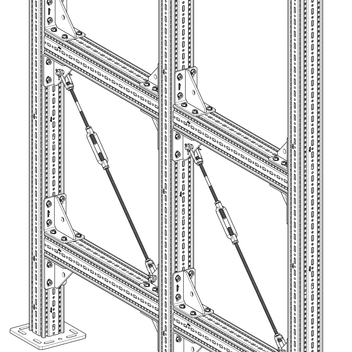

Connections with the Corner Bracket WD F 100 allow flexible constructions and provide a high load capacity at the same time. The central hole allows for the integration of diagonal cross-bracing allowing more complex structures the be made.

Installation

To be used in pairs only. By using 8 x Self Forming Screw FLS for one Corner Bracket.

Technical Data

Type
perm. tensile load bracket hole
[kN]
WD F 100 140/140 45.3

Material:
Steel, HCP

Approvals / Conformity

TypeW
[lb]
W
[kg]
Quantity
[pack]
Part
number
WD F 100 140/1404.191.91 113095
