Pipe Shoes

Pipe Shoe LC - HV

Application

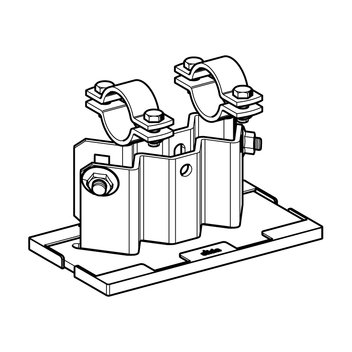

Pipe Shoe - Double Clamp
For pipes on suitable surfaces. Height-adjustable in steps of 1/10" (2.5 mm). When resting on steel beams, a minimum flange width of 3 1/8" (80 mm) is recommended.

Scope of delivery

Upper and lower part are bolted together allowing height adjustment. The slide plate is fixed to the lower part.

Technical Data

Type
Height H
as delivered [in]
Height H
range [in]
LC - HV 90 3 9/16" 3 1/2" ... 4 1/2"
LC - HV 150 5 15/16" 4 9/16" ... 6 5/8"
LC - HV 200 7 7/8" 6 3/4" ... 8 13/16"

Type
Height H
as delivered [mm]
Height H
range [mm]
LC - HV 90 90 88.5 ... 113.5
LC - HV 150 150 116 ... 168.5
LC - HV 200 200 171 ... 223.5


Tightening torque screw connections:

Clamping bolts
[NB]
Clamping bolts
[NPS]
tightening torque
[lbf/ft]
height adjustment
tightening torque
[lbf/ft]
DN 15 - 40 1/2" - 1 1/2" 29.5 bolts in the bar 59
DN 50 - 200 2" - 8" 36.88 bolts in the bar 59
DN 250 - 300 10" - 12" 44.25 bolts in the bar 59

Clamping bolts
tightening torque
[Nm]
height adjustment
tightening torque
[Nm]
DN 15 - 40 40 bolts in the bar 80
DN 50 - 200 50 bolts in the bar 80
DN 250 - 300 60 bolts in the bar 80

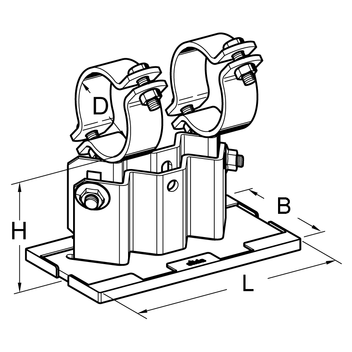

Dimensions:

Metal plate:
L = 9 7/8" x B = 3 15/16" (L = 250 mm x B = 100 mm)
Slide plate incl.:
L = 10 1/16" x B = 4 1/8" (L = 256 mm x B = 105 mm)

Material:
Metal parts:
Steel, HCP
Bolts, Nuts:
Steel, HCP
Slide plate:
Polyamide 6.0, glass fibre reinforced, black
Temperaturbereich Gleitplatte:
-20°C bis +130°C
Medientemperatur tf :
-20°C bis +300°C (wenn tf > 270°C, Gleitplatte entfernen)

Approvals / Conformity


Pipe Shoe - external monitoring PDF | 626.1 KB Overview "All Pipe Shoes LC - HV" PDF | 196.1 KB

Further clamping ranges listed in the attached "PDF-Overview" all pipe shoes.
Note: Pipe shoes HV 200 and outside the DN range - minimum quantity and delivery time on request.

TypeNPSD (pipe)
[mm]
W
[lb]
W
[kg]
Quantity
[pack]
Part
number
LC - HV 90 18-22 (DN 15) 1/2"1/2"18 - 227.723.51 112392
LC - HV 90 23-27 (DN 20) 3/4"3/4"23 - 277.723.51 112393
LC - HV 90 30-34 (DN 25) 1"1"30 - 347.943.61 110062
LC - HV 90 40-44 (DN 32) 1 1/4"1 1/4"40 - 448.163.71 110063
LC - HV 90 45-49 (DN 40) 1 1/2"1 1/2"45 - 498.163.71 110064
LC - HV 90 57-61 (DN 50) 2"2"57 - 619.044.11 110065
LC - HV 90 72-77 (DN 65) 2 1/2"2 1/2"72 - 779.484.31 110066
LC - HV 90 84-89 (DN 80) 3"3"84 - 899.704.41 110067
LC - HV 90 109-115 (DN 100) 4"4"109 - 1159.705.11 110068
LC - HV 90 134-140 (DN 125) 5"5"134 - 14011.905.41 110069
LC - HV 90 163-169 (DN 150) 6"6"163 - 16916.317.11 110070
LC - HV 90 215-221 (DN 200) 8"8"215 - 22118.308.31 110071
LC - HV 90 266-273 (DN 250) 10"10"266 - 27324.4711.11 110072
LC -HV 90 317-324 (DN 300) 12"12"317 - 32426.4612.01 110073

LC - HV 150 18-22 (DN 15) 1/2"1/2"18 - 228.824.01 112394
LC - HV 150 23-27 (DN 20) 3/4"3/4"23 - 278.824.01 112395
LC - HV 150 30-34 (DN 25) 1"1"30 - 348.824.01 110074
LC - HV 150 40-44 (DN 32) 1 1/4"1 1/4"40 - 449.044.11 110075
LC - HV 150 45-49 (DN 40) 1 1/2"1 1/2"45 - 499.264.21 110076
LC - HV 150 57-61 (DN 50) 2"2"57 - 6110.144.61 110077
LC - HV 150 72-77 (DN 65) 2 1/2"2 1/2"72 - 7710.584.81 110078
LC - HV 150 84-89 (DN 80) 3"3"84 - 8910.804.91 110079
LC - HV 150 109-115 (DN 100) 4"4"109 - 11512.135.51 110080
LC - HV 150 134-140 (DN 125) 5"5"134 - 14012.795.81 110081
LC - HV 150 163-169 (DN 150) 6"6"163 - 16917.207.81 110082
LC - HV 150 215-221 (DN 200) 8"8"215 - 22119.408.81 110083
LC - HV 150 266-273 (DN 250) 10"10"266 - 27325.579.61 110084
LC - HV 150 317-324 (DN 300) 12"12"317 - 32427.7812.31 110085

LC - HV 200 18-22 (DN 15) 1/2"1/2"18 - 229.924.51 112396
LC - HV 200 23-27 (DN 20) 3/4"3/4"23 - 279.924.51 112397
LC - HV 200 30-34 (DN 25) 1"1"30 - 3410.144.61 110086
LC - HV 200 40-44 (DN 32) 1 1/4"1 1/4"40 - 4410.804.91 110087
LC - HV 200 45-49 (DN 40) 1 1/2"1 1/2"45 - 4910.804.91 110088
LC - HV 200 57-61 (DN 50) 2"2"57 - 6111.465.21 110089
LC - HV 200 72-77 (DN 65) 2 1/2"2 1/2"72 - 7711.685.31 110090
LC - HV 200 84-89 (DN 80) 3"3"84 - 8911.905.41 110091
LC - HV 200 109-115 (DN 100) 4"4"109 - 11513.456.11 110092
LC - HV 200 134-140 (DN 125) 5"5"134 - 14013.676.21 110093
LC - HV 200 163-169 (DN 150) 6"6"163 - 16918.528.41 110094
LC - HV 200 215-221 (DN 200) 8"8"215 - 22120.949.51 110095
LC - HV 200 266-273 (DN 250) 10"10"266 - 27326.4612.01 110096
LC - HV 200 317-324 (DN 300) 12"12"317 - 32428.6613.01 110097
